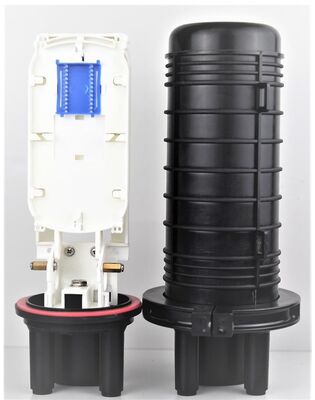

PP ABS Fiber Optic Splice Closure 3 in 3 out 96 Fibers with 3 ports
Description:
Protection Grade: IP68
Material: PP, ABS
Entry Ports: 3(1oval(28x58mm)+2x16mm , 6(1X23+5X12mm round )
Maximum Trays: 2 trays, 24C
Maximum Adapter: 4SC/4LC
Buffer Storage: Basket bracket mount
Dimension (H x D): 320mm * 100mm
Environment Temperature: -30°C ~ +60°C
Pressure: 70kPa ~ 106kPa
Sealing Port: Heat shrinking
Quality Warranty: 2 years
Life Span: More than 25 years
Weight: 1.0-1.2Kg
Package (mm): 18 pcs/carton, carton size:480*480*720, inner box size: 330150150
Use: Stainless nut
Environment ⚫Temperature: -30℃- +60℃ Atmospheric Pressure:70-106Kpa ②.Life Span:More than 25 years. ③.Material:Higt strength polypropylene(PP)
Applications:
Aerial,Wall mounted,pole mounted,manhole,duct mounting,pipeline,direct buried..etc
Specifications:
| Model |
No.of ports |
Cable range |
Max trays
|
Max Capacity |
Dimensions |
| GJS20-DR02A-6port-6holder-tpr |
6 |
8-20mm |
4 |
9 6cores |
430×ф130mm |
Competitive Advantage:
Easy & fast installation with no special tools
Superior sealing performance(free sample for testing)
The closure can be repeatly used many times.
The cables can be fixed from 3 points,safe and reliable
Enough space for surplus fibers inside the closure
Flexible branching for fibers
loose leaf type of splice tray fixing,easy operation&maintain
Modular fiber management system
Pictures:

tray The holder can be mounted on the tray two side
